Array representation of Heap:

• We are using array’s to represent heap.
• We can also represent heap using pointers or references.

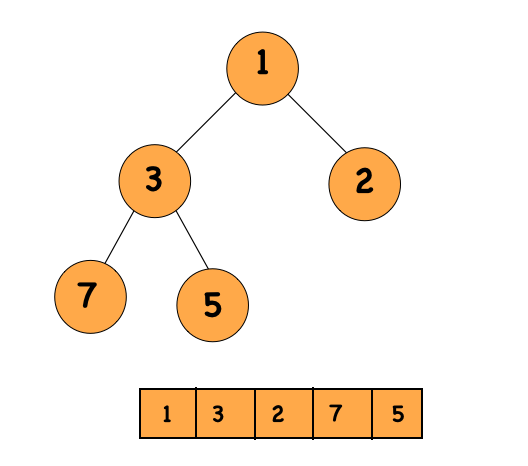

MinHeap Representation

• Using Level Order traversal

            arr[0] = smallest_Element
            smallest_Element =  O(1) Time Complexity
            heap[0] = O(1)

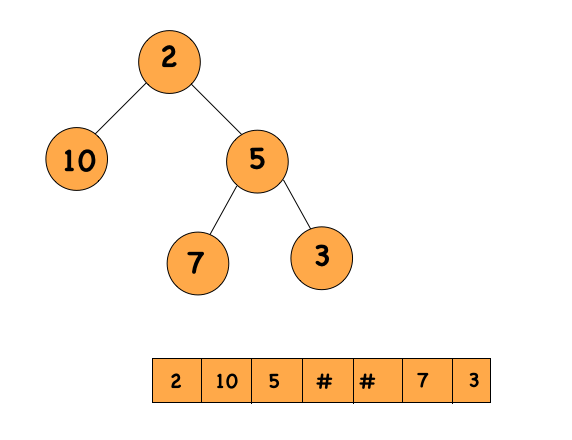

Binary Tree representation using Array

All the empty spaces are represented by '#'

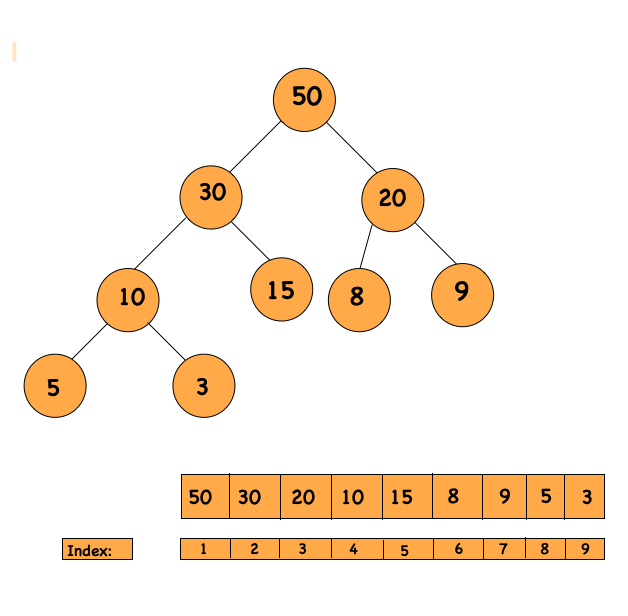

MaxHeap Representation

            maxElement = heap[0]


Have to find Children of i^th node:

Formula’s based on index 1

left = 2 * i

right = 2 * i + 1

parent = ith

Formula’s based on index 0

left = (2*i + 1)

right = (2*i + 2)

parent = (i - 1) / 2

Operations in Heap

• Insert
  • We need to make sure that we follow these two rules:
    • Complete Binary Tree
    • Parent value <= children
• Extract / Delete
  • Only Extract (delete) from the root/top/front.
  • In minHeap: The minimum value will be extracted from the heap.
  • In maxHeap: The maximum value will be extracted from the heap.
• Peek: This also happens at top.

Inserting Elements to a Heap

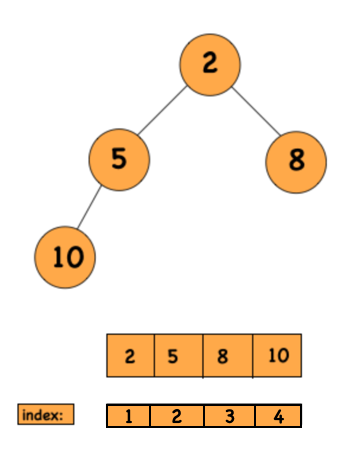

MinHeap:

Insert 1.

• Always ensure that your heap is a complete binary tree.
• All Parent <= Children

Heapify

The process of moving these values up and mainting the property of heap is known as Heapify. Basically, restructuring or rearranging the elements inside the binary tree so that it becomes a Heap.

Above is the example of Heapify-up
