Floyd Warshall Algorithm

All Pairs Shortest Path’s

• The Floyd Warshall Algorithm is a graph algorithm used to find the shortest distance between every pair of vertices (nodes) in a weighted graph. Unlike algorithms such as Dijkstra, which find the shortest path from a single source to all other vertices, Floyd Warshall computes the shortest paths between all possible pairs of vertices.
• The algorithm works for both directed and undirected weighted graphs. It can also handle negative edge weights, but it cannot be used if the graph contains a negative weight cycle because, in such cases, the shortest path is not well-defined.

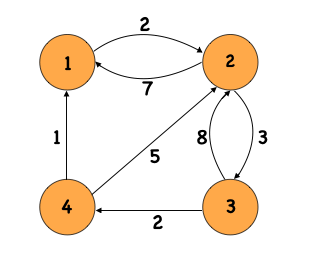

Find Shortest Paths ?

Use Cases

Shortest path (Between 4 to 2)

4 → 2

4 → 1 → 2

4 → 3 → 2

Shortest Path (Between 1 to 3)

1 → 3

1 → 2 → 3

1 → 4 → 3

Find Shortest Path Between i to j

• i → j where i and j any node’s.

• i → k → j where k is try all possible other nodes.

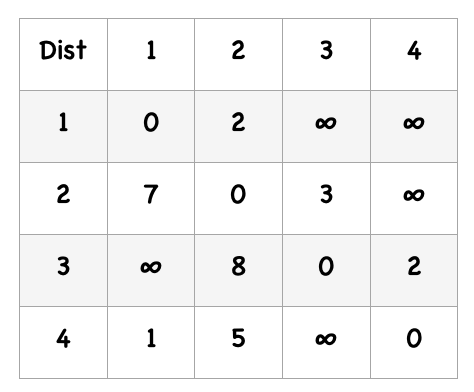

Analyse the graph into 2D matrix

s(i → j) = (i → k → j)

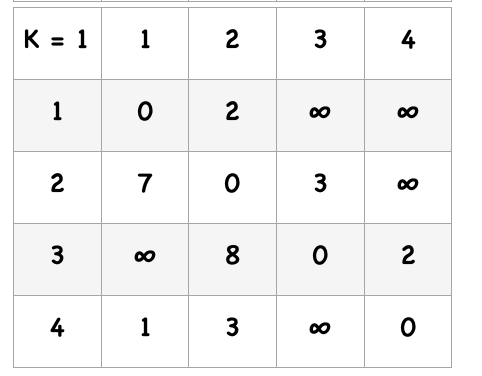

k = 1

dist[i][j] = Math.min((dist[i][k] + dist[k][j])) dist[i][j]

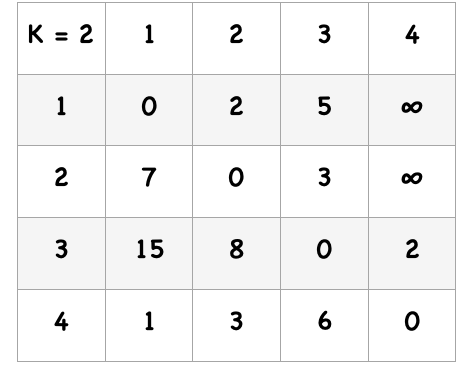

k = 2

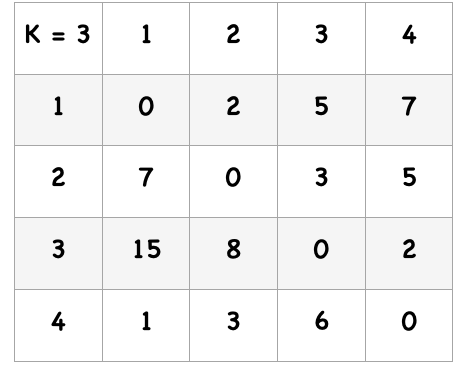

k = 3

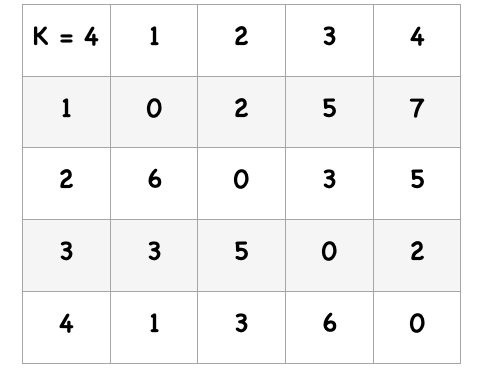

k = 4

At k=4, we find the shortest paths between all pairs of vertices using vertex 4 as an intermediate node.
