Compaction in Operating Systems

Over time, as processes load into memory and finish their work, the free space they leave behind gets scattered all over the place. Individual gaps here and there might each be too small to be useful, even when their combined size would be more than enough to load a new process.

Compaction is the heavy-duty housekeeping operation the operating system uses to clean up this mess.

Compaction is the physical shifting of active processes. The OS slides all the currently running processes tightly toward one end of memory. This naturally pushes all the scattered free gaps toward the other end, forcing them to merge into one massive, usable block of free space.

However, this does not happen constantly. Compaction is an extremely expensive operation. The OS only triggers it when external memory fragmentation has built up to a critical point where it is genuinely blocking new processes from running.

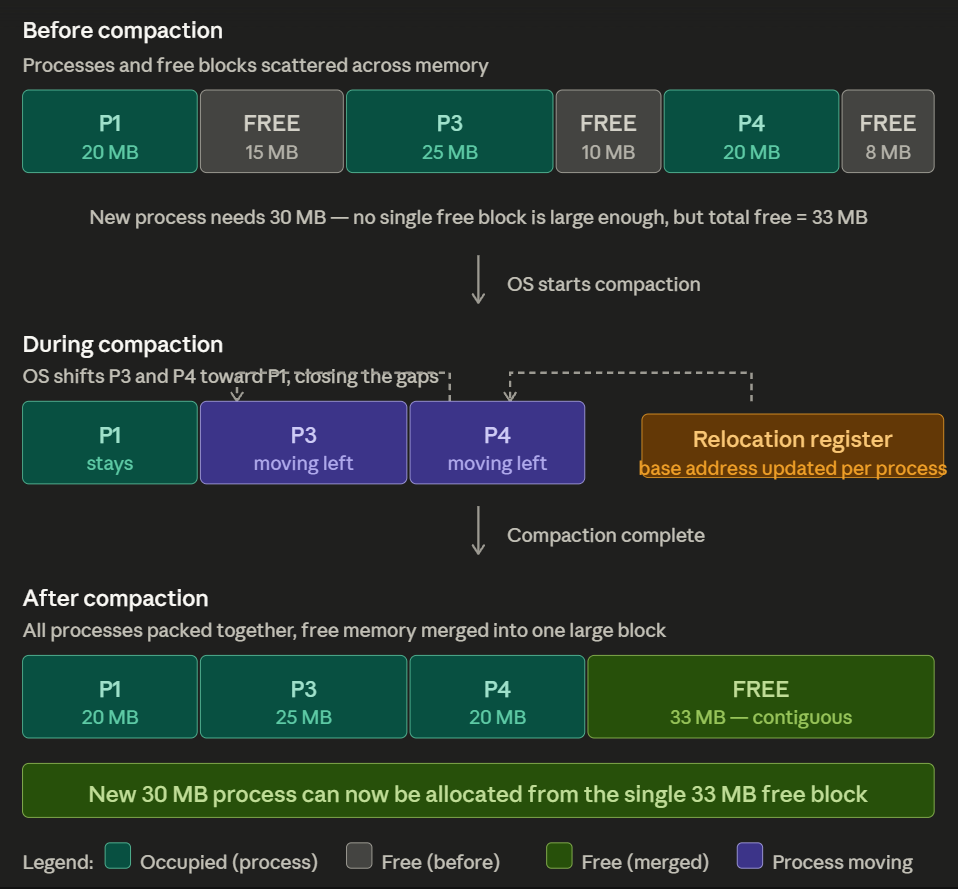

Consider a scenario where three processes are loaded, but they are separated by small holes of 15MB, 10MB, and 8MB. A new process arrives needing 30MB of contiguous space. It gets rejected, even though 33MB is technically free.

Now that the single 33MB free block has been formed, it easily fits the new 30MB process. The total free memory never changed; it was just arranged more usefully.

Moving a process in memory sounds simple, but it creates a massive technical problem. A process generates memory addresses based on where it was originally loaded. If the OS suddenly slides it to a different location, all its internal pointers and addresses instantly become wrong. It would crash immediately.

To prevent this, Compaction absolutely requires Dynamic Relocation (Execution Time Binding).

With dynamic relocation, the OS uses a hardware Relocation Register to store the base address of wherever the process currently lives. The process itself only knows its logical addresses (e.g., Address 10).

If a process originally sat at address 5000 and the OS moves it to address 12000 during compaction, the OS simply updates the Relocation Register from 5000 to 12000. When the process resumes and asks for Address 10, the hardware does the math (12000 + 10) on the fly. The process never even knows it was moved.

Compaction is a targeted, brute-force fix for external fragmentation. By physically rearranging processes so that free memory consolidates into one place, the OS recovers space that would otherwise sit wasted.

However, because it requires dynamic relocation support and comes with severe costs in CPU time and process interruption, it is used very selectively. It is a necessary evil in contiguous memory systems, but its high overhead is exactly what pushed modern operating systems to adopt Paging instead.
